INFINITY I-Line
Technical Information

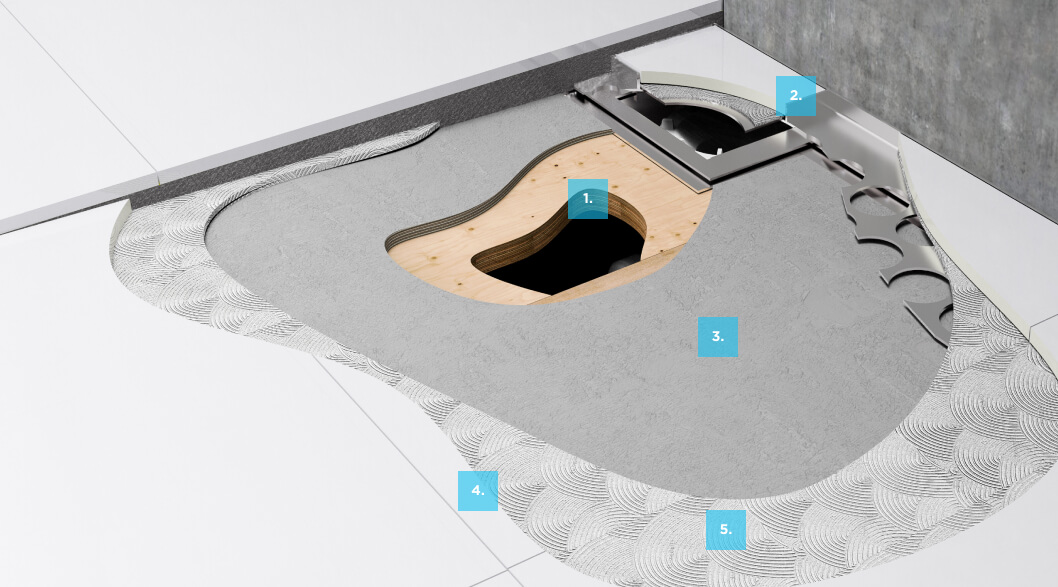

The INFINITY I-Line is integrated into the wet room floor, embedded into the former then layered over with tile adhesive and tiles, eventually leaving almost nothing of our product left on show.

1. OTL Plywood former, manufactured with a built-in gradient – directional to the channel – creating the perfectly shaped wet room floor.

2. OTL INFINITY I-Line waste channel, created in-house by our experts and exclusive to OTL, the INFINITY I-Line is manufactured high grade stainless steel.

3. OTL Tanking, specifically developed to eliminate the problem of leakages.

4. Tile adhesive.

5. Tile finish, suitable for large format tile or large slab material.

INFINITY I-Line Wet Room
Technical Information

The INFINITY I-Line is integrated into the wet room floor, embedded into the former then layered over with tile adhesive and tiles, eventually leaving almost nothing of our product left on show.

1. OTL Plywood former, manufactured with a built-in gradient – directional to the channel – creating the perfectly shaped wet room floor.

2. OTL INFINITY I-Line waste channel, created in-house by our experts and exclusive to OTL, the INFINITY I-Line is manufactured high grade stainless steel.

3. OTL Tanking, specifically developed to eliminate the problem of leakages.

4. Tile adhesive.

5. Tile finish, suitable for large format tile or large slab material.

WHATS INCLUDED

Components

Infinity I-Line Channel

CHANNEL

Available in a range of widths, with the waste positioned on either the left-hand or right-hand side. The INFINITY I-Line provides the ultimate in streamlined, luxury wet room design. A removable housing plate sits on the channel to allow for easy cleaning of the trap gully.

View INFINITY I-Line Channels

Infinity ST90-70B Gully

GULLY

The INFINITY I-Line channel is supplied with a 34 litres per minute (LPM) horizontal shallow gully as standard (ST90-70B). However, you do have the option to switch to a horizontal deep gully (50 LPM) or a vertical gully (42 LPM) if required.

View INFINITY I-Line Gullies

Infinity Left Hand Former

INFINITY FORMER

Available in a range of stock sizes, or bespoke to suit your exact requirements. The former features a 16mm integrated, one-way fall. Trimmable 50mm shoulders for the perfect fit and easy installation.

View INFINITY I-Line Right-Hand Formers

View INFINITY I-Line Left-Hand Formers

Infinity I-Line Tanking Kit

TANKING

The INFINITY I-Line tanking kit comes with everything you need to waterproof your wet room project. For larger rooms you may need extra bits, and these tanking accessories can be purchased separately.

View INFINITY I-Line Tanking Kit

1-Way Fall

Only found on the OTL INFINITY I-Line, all the water is directed towards the channel edging the wall, allowing for an easy tiling process. The beginning part of this video explains visually the 1-way fall, how to work with trimmable shoulders and the tile cut finish for this fall option.

Suitable For

SECTORS

Most commonly used in residential new builds, renovations, or high-end hotels to give a premium experience to guests.

FLOOR TYPES

The INFINITY I-Line former can be used on any floor build up, be it timber joists, concrete or beam and block.

FLOOR FINISHES

The 1-way fall found on the INFINITY I-Line allows for an easy tiling process. Not suitable for use with mosaic tiles, but perfect for large format tile, large slab material, and standard tiling.

UNDERFLOOR HEATING

Compatible with wet or electric underfloor heating.

Electric mats sit on top of our former (not laid within 300mm of waste) and wet systems (pipes with water running through them, connected to main central heating system) should be laid underneath the former.



INFINITY I-Line Wet Room Installation

OTL wet room floors are easy to install. We have to hand PDF instructions, an installation video, and help at the end of the phone from our friendly team.



Wet Room Cleaning & Maintenance

It is recommended that regular routine maintenance should be carried out at least every 3 months (this may need to be done more frequently depending on usage).

OTL provide you with all the tools you need to make regular cleaning quick and easy.

Our maintenance guide can be found in our downloads section.

Technical Drawings & Guides

For technical drawings and guides please follow this link
